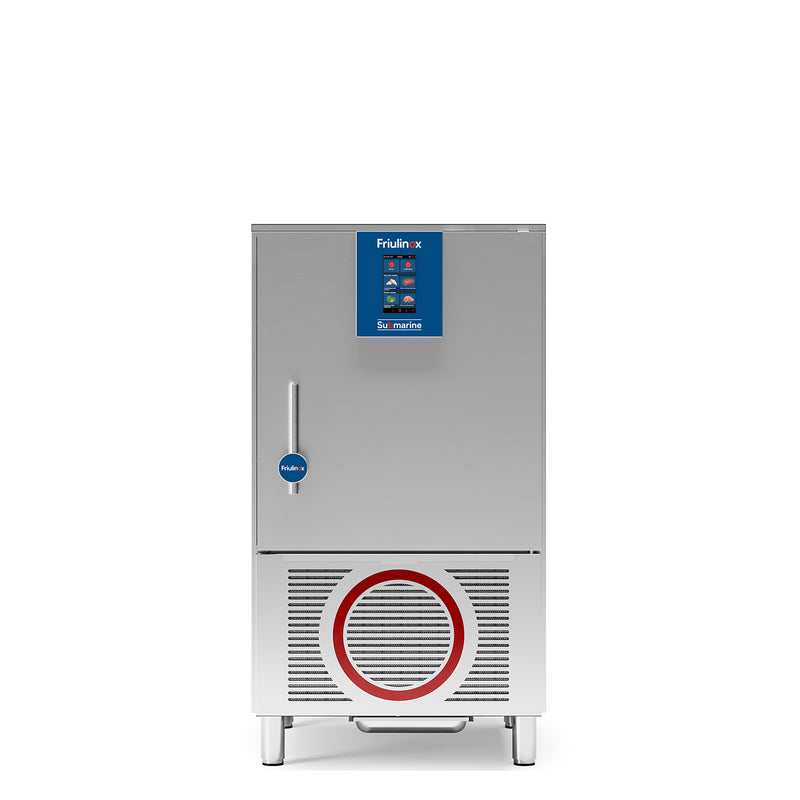

FRIULINOX SBM-091-HA-R290 Submarine Multifunction Cabinet – 9 × GN 1/1

MULTIFUNCTION CABINET – 9 × GN 1/1 – 9 × EN 1 (600 × 400) – air condensing unit – gas R290 • interface with touch-screen controls and 7" graphic colour display

How To Use

Core positive blast chilling +90 °C/+3 °C. Core flash freezing +90 °C/-18 °C. Thawing at controlled temperature and humidity. Rising with injection of humidity in the chamber. Slow cooking at low temperatures up to +85 °C. Temperature maintenance +65 °C. Refrigerated maintenance +6 °C. Freeze maintenance –10 °C.

Control Mechanisms

7" touch-screen colour display with control interface. Quick-release heated core probe with 4 measuring points. Control-activated chamber sanitisation system with active ions (HI-GIENE). Photo-identifiable processes. IoT connectivity as standard. USB connection for uploading and downloading data/recipes. Water inlet valve. Internal fan stop by micro-switch when door is opened. Anti-odour door lock. Alarm viewing.

Structural Characteristics

External Scotch-Brite satin-finish stainless steel. High-density CFC- and HCFC-free PU insulation (42 kg/m³). Stainless-steel internal coating with fully rounded corners. Anti-condensation heating element located on the cabinet under the magnetic seal stop. Strongbox ergonomic handle. Indirect-flow electric fans – made of composite material – on the product. Patented chamber humidity-injecting system. Side guide-supporting uprights with 18 mm-pitch holes. Compressor-protecting automatic-reset thermal circuit-breaker. Copper–aluminium evaporating coil, cataphoresis-painted. Copper condensing coil with aluminium fins and high thermal efficiency. Highly ventilated evaporator to ensure the cooling system's maximum efficiency. Die-moulded and leak-proof internal base. Magnetic seal on four sides of the door.

Operation

Wi-Fi connection for HACCP-log download and remote service. Ethernet connection for HACCP-log download and remote service. Automatic defrost cycles. Cell pre-cooling. Drying. Multilevel function. Automatic storage at the end of the blast-chilling cycle.

Cleaning And Maintenance

Easy to clean in accordance with UNI EN 14159 hygiene regulations. Easy to wash and hygienically safe thanks to the suspended evaporator coil.

Installation And Environment

Quality ISO 9001 / Safety ISO 45001 / Environmental ISO 14001 certification. 100 % recyclable packaging.

Condensing Units

Automatic defrost and defrost-water self-evaporating. R290 ecological refrigerant gas.

Specifications
