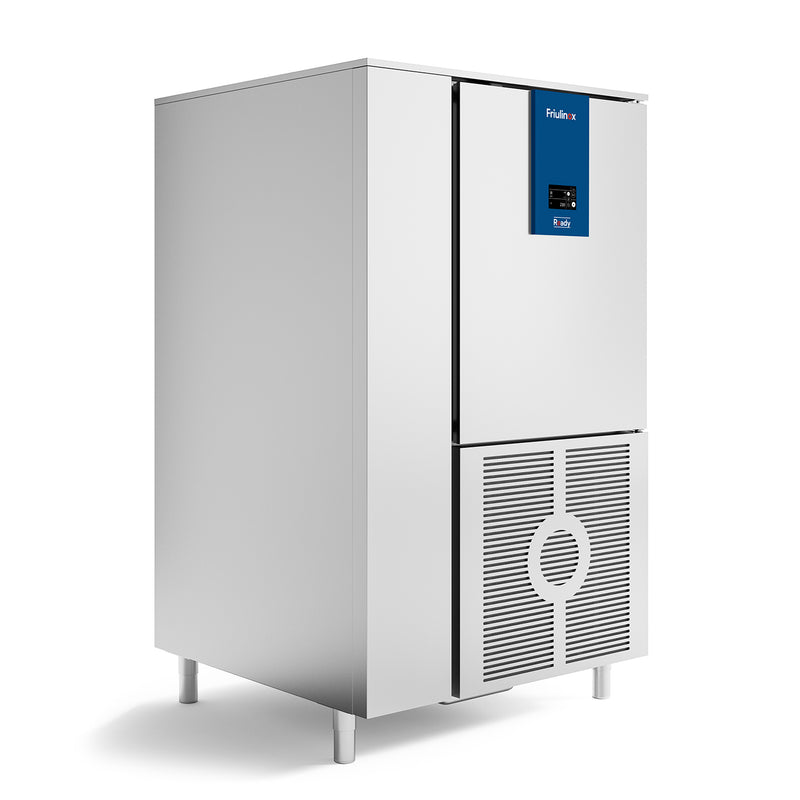

FRIULINOX RBS-122-SA-R290 Ready Blast Chiller – 24 × GN 1/1

BLAST CHILLER for small- to medium-size catering and bakery operations – SUPER version • tray capacity 24 × GN 1/1 – 24 × EN 1 (600 × 400) • air condensing unit

How To Use

Positive blast chilling +90 °C / +3 °C at the soft and hard core. +3 °C storage at the end of the cycle. Fast soft and hard-core freezing +90 °C / –18 °C. –18 °C storage at the end of the cycle. Automatic fish-sanitising cycle. Automatic ice-cream hardening cycle.

Control Mechanisms

Connectivity available on request. Processes identifiable by pictograms and text. Customisable programmes for your own recipes. Bluetooth connection enabled via free app to monitor and download HACCP data (optional). Internal fan stop by micro-switch when door is opened. Alarm viewing. Quick-release heated core probe with 4 measuring points. 5" touch-screen colour display with control interface.

Structural Characteristics

External Scotch-Brite satin-finish stainless steel. High-density CFC- and HCFC-free PU insulation (42 kg/m³). Stainless-steel internal coating with fully rounded corners. Indirect-flow electric fans – made of composite material – on the product. Side guide-supporting uprights with 18 mm-pitch holes. Compressor-protecting automatic-reset thermal circuit-breaker. Copper–aluminium evaporating coil, cataphoresis-painted. Copper condensing coil with aluminium fins and high thermal efficiency. Full-length flush ergonomic handle. Anti-condensation heating element situated on the body frame, under the stop. Double-pitch (GN-EN) stainless-steel slides, removable and equipped with anti-tip system. Slide for étagère insertion. Heated door frame. Highly ventilated evaporator to ensure the cooling system's maximum efficiency. Insulation thickness: 60 mm. Die-moulded and leak-proof internal base. Magnetic seal on four sides of the door.

Cleaning And Maintenance

Easy to clean in accordance with UNI EN 14159 hygiene regulations. Easy to wash and hygienically safe thanks to the suspended evaporator coil.

Condensing Units

Provision for other types of refrigerant gas on request. Automatic defrost and defrost-water self-evaporating. R290 ecological refrigerant gas. VERSIONS AVAILABLE: Model with wheels. Model with left-hinged door.

Specifications
