Scotsman MXF427 Modular Flaked Ice Machine
Scotsman MXF427 Modular Flaked Ice Machine
Couldn't load pickup availability
The Scotsman MXF 427 is a powerful, space-efficient modular flaked ice machine designed to produce up to 220kg of superflake ice every 24 hours. With a 15% residual water content, superflake ice is soft, moldable, and ideal for food processing, seafood preservation, therapeutic use, and scientific applications.

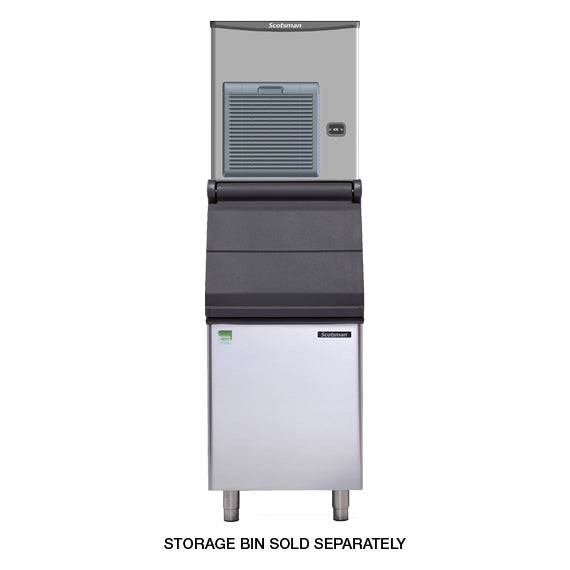

Paired with the Scotsman SB 322 storage bin (168kg capacity), this setup ensures optimal storage and hygienic access for large-scale operations requiring dependable and clean ice handling.

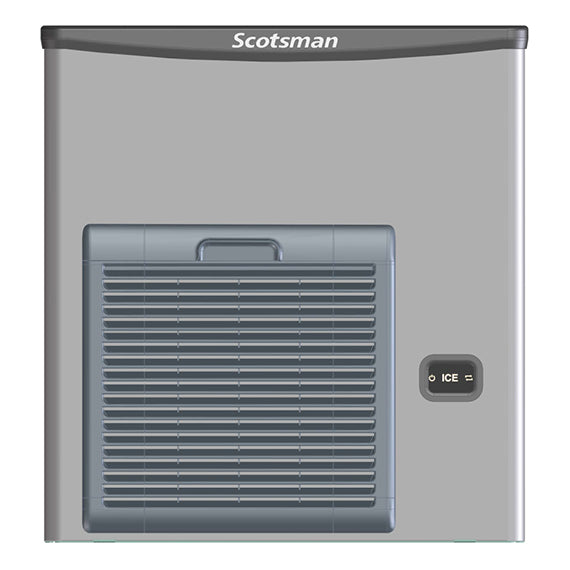

🔹 MXF 427 Ice Machine – Head Unit Specifications
Specification | Details |
---|---|
Model | Scotsman MXF 427 (Head Only) |
Ice Type | Superflake (15% residual water) |
Max Ice Production | 220 Kg per 24 hours |
Dimensions (W x D x H) | 560 x 615 x 600 mm |
Unit Weight | 51 Kg |
Water Consumption | 7.9 Litres/hr |
Energy Consumption | 16.3 kWh/24hrs |
Refrigeration | R290 (Eco-Friendly) |
Voltage | 230V / 50Hz / 1Ph |
Fuse / CB Rating | 10 Amp |
Recommended Water Filter | 3M HF40-S |
✅ Mid-range Production – Ideal balance between capacity and footprint
✅ Versatile Application – Trusted in food, medical, and scientific industries
✅ Sustainable Operation – Environmentally friendly refrigerant
✅ Modular Design – Fits seamlessly with Scotsman storage solutions
🔹 SB 322 Ice Storage Bin – Specifications
Specification | Details |
---|---|
Model | Scotsman SB 322 |
Storage Capacity | 168 Kg |
Dimensions (W x D x H) | 568 x 872 x 1271 mm |
Unit Weight | 48 Kg |
Compatible With | Scotsman MXG, NW, MFN & MF Series |
✅ Sleek, Durable Design – Stainless steel exterior and impact-resistant build
✅ Slope Front Bin – Easy access and ergonomic ice retrieval
✅ Hygienic Interior – High-density polyethylene liner resists scratches and contamination
✅ Built-in Scoop Holder – Promotes cleanliness and convenience
✅ Well-Insulated – Polyurethane insulation preserves ice longer
💡 Perfect For:
-
Food Processing Facilities
-
Seafood & Fishing Industry
-
Medical & Sports Therapy Clinics
-
Clinical & Research Laboratories
