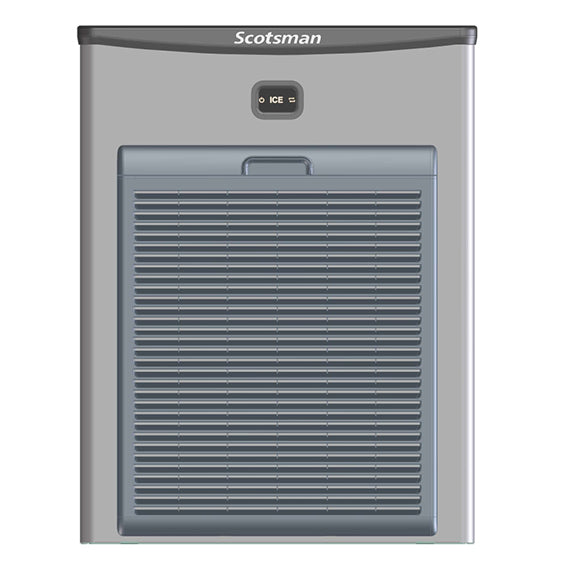

Engineered for industrial-grade applications, the Scotsman MXF 1027 modular flaked ice machine delivers exceptional performance—producing up to 500kg of superflake ice per 24 hours. With 15% residual water content, superflake ice is ideal for food preservation, seafood processing, cold therapy, and laboratory environments.

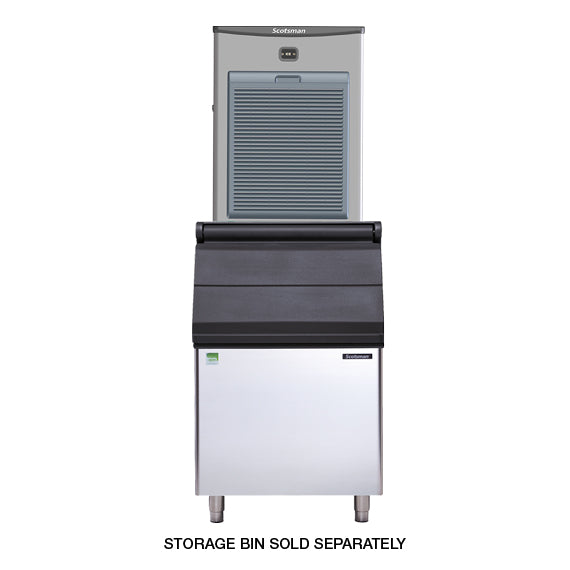

Paired with the robust Scotsman SB 530 storage bin (243kg capacity), this combination ensures large-scale ice availability, convenient storage, and hygienic handling—all in a compact, efficient design.
Specification | Details |
---|---|
Model | Scotsman MXF 1027 (Head Only) |

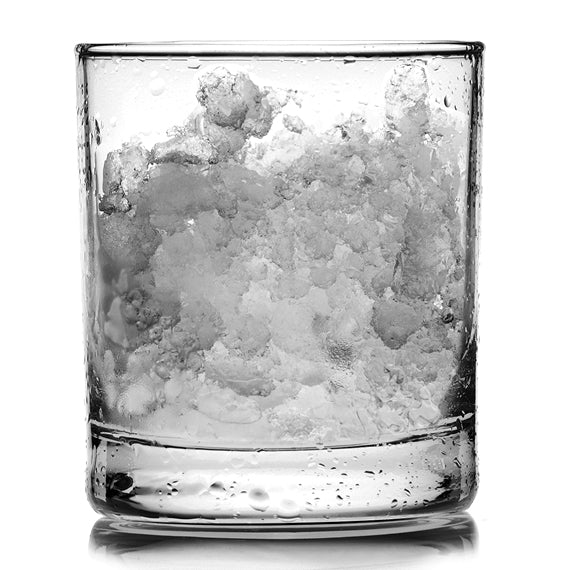

Ice Type | Superflake (15% residual water) |
Max Ice Production | 500 Kg per 24 hours |
Dimensions (W x D x H) | 560 x 615 x 735 mm |
Unit Weight | 80 Kg |
Water Consumption | 13.1 Litres/hr |
Energy Consumption | 35.5 kWh/24hrs |
Refrigeration | R290 (Environmentally friendly) |
Voltage | 230V / 50Hz / 1Ph |
Fuse / CB Rating | 10 Amp |
Recommended Water Filter | 3M HF60-S |
✅ High-Capacity Output – For commercial and industrial ice needs
✅ Reliable & Efficient – Energy and water usage optimized for performance
✅ Eco-Friendly Refrigerant – R290 for reduced environmental impact
✅ Modular Compatibility – Seamlessly integrates with Scotsman storage bins
Specification | Details |
---|---|
Model | Scotsman SB 530 |
Storage Capacity | 243 Kg |
Dimensions (W x D x H) | 768 x 866 x 1274 mm |
Unit Weight | 55 Kg |
Compatible With | Scotsman MXG, NW, MFN & MF Series |
✅ Slope Front Access – Easy, ergonomic ice retrieval
✅ Durable & Hygienic – Stainless steel exterior and poly liner with smooth, rounded corners
✅ Integrated Scoop Holder – Keeps operations clean and sanitary
✅ Optimized Insulation – Polyurethane for long-lasting ice storage
✅ Heavy-Duty Construction – Withstands busy commercial environments
