Marco FRIIA HC – Hot and Cold Water Dispenser

The Marco FRIIA HC is a high-performance undercounter water delivery system offering instant hot and cold water via a single, stylish countertop font. Designed using award-winning technology, FRIIA HC includes a MIX UC3 boiler, chiller, and drip tray, making it an ideal alternative to point-of-use water coolers in offices, schools, gyms, coffee shops, and canteens.

What’s Included:

• MIX UC3 Boiler (3L immediate hot water draw-off)

• Undercounter Chiller

• FRIIA HC Font with Drip Tray

Key Features:

• Dual Temperature Dispense: Instant hot and chilled water from one unit

• Compact Undercounter Design: Saves valuable countertop space

• Efficient Output:

  • Hot Water: 3L immediate draw-off, up to 28L/hr

  • Cold Water: 30–40L/hr depending on inlet water temperature

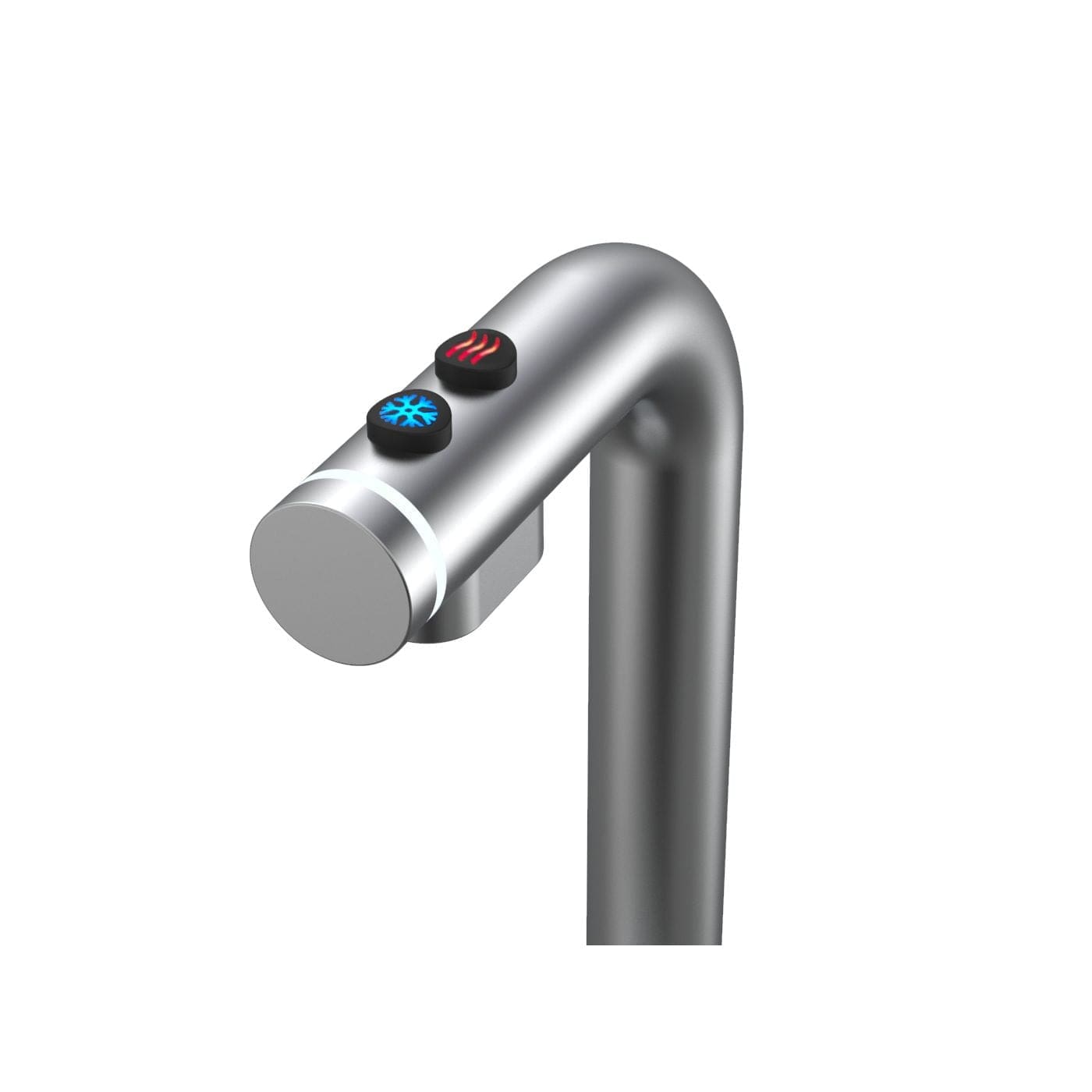

• Sleek Tap Design: Modern countertop font with integrated drip tray

• Ventilated Chiller: Reliable performance with R290 refrigerant

• Ideal For: Offices, staff kitchens, education facilities, and cafés

Technical Specifications:

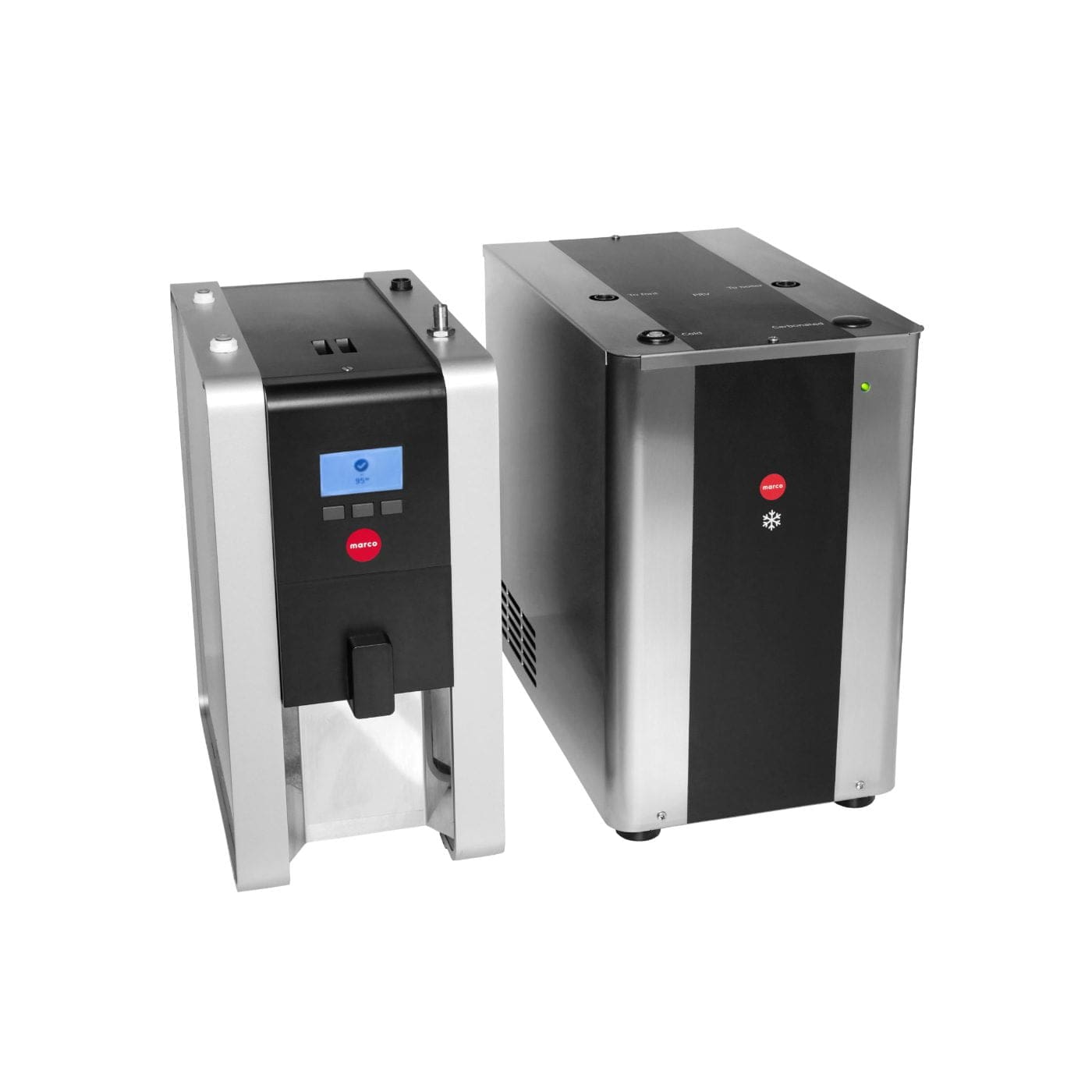

Chiller Unit

• Order Code: 1000860

• Dimensions (D x W x H): 436 x 259 x 455 mm

• Performance: 30–40 L/hr (chilled) @ ΔT 10°C

• Cups/hr: 175–235

• Power: 180W @ 220V

• Compressor: 1/8 hp

• Refrigerant: 45g R290

• Plumbing: ¾” BSP

• Shipping Dimensions: 500 x 320 x 520 mm

• Weight: 31 kg

MIX UC3 Boiler

• Order Code: 1000880

• Dimensions (D x W x H): 385 x 210 x 444 mm

• Immediate Draw-Off: 3L

• Hourly Output: 28L

• Cups/hr: 156

• Power: 2.8kW @ 220V

• Plumbing: ¾” BSP

• Shipping Dimensions: 450 x 290 x 540 mm

• Weight: 11 kg

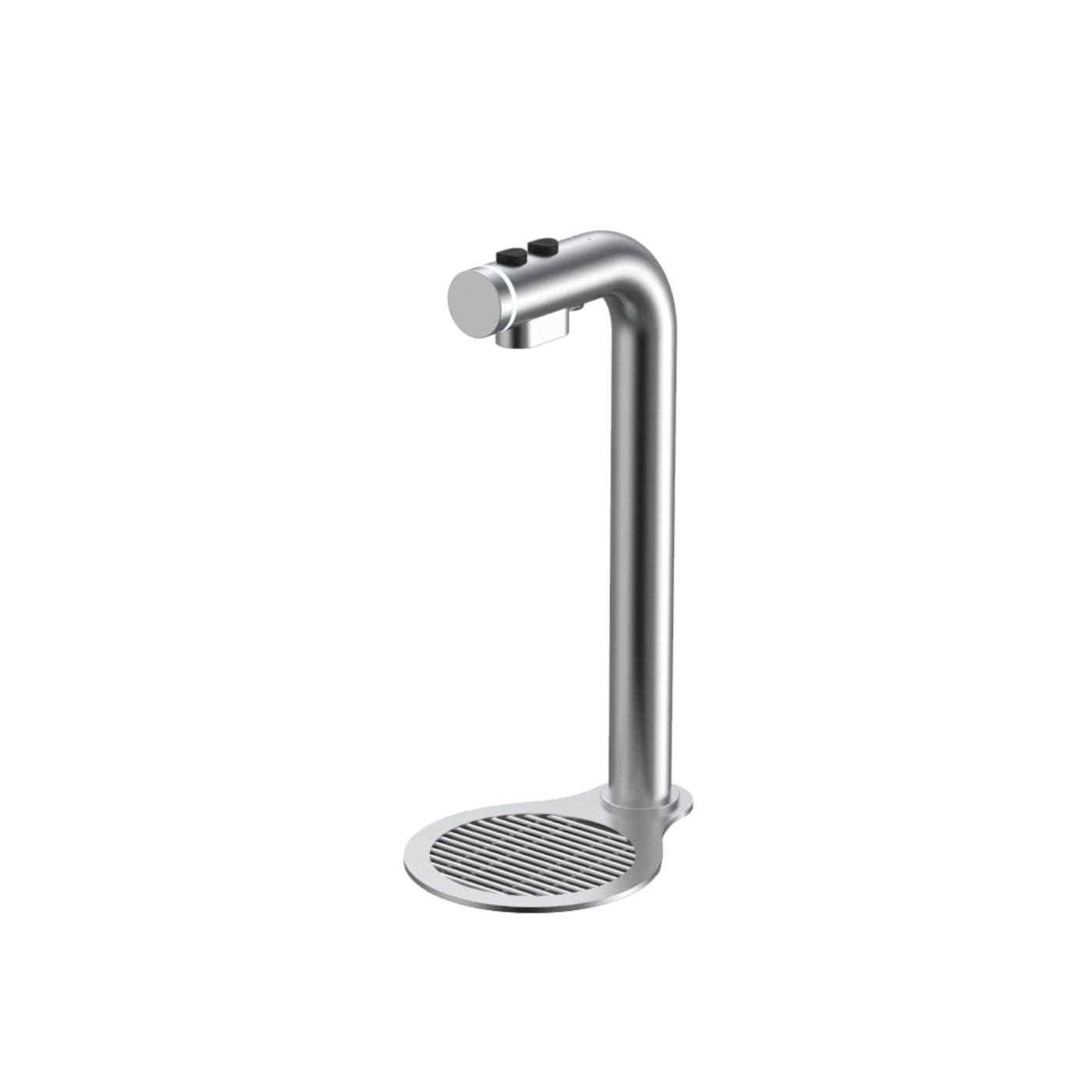

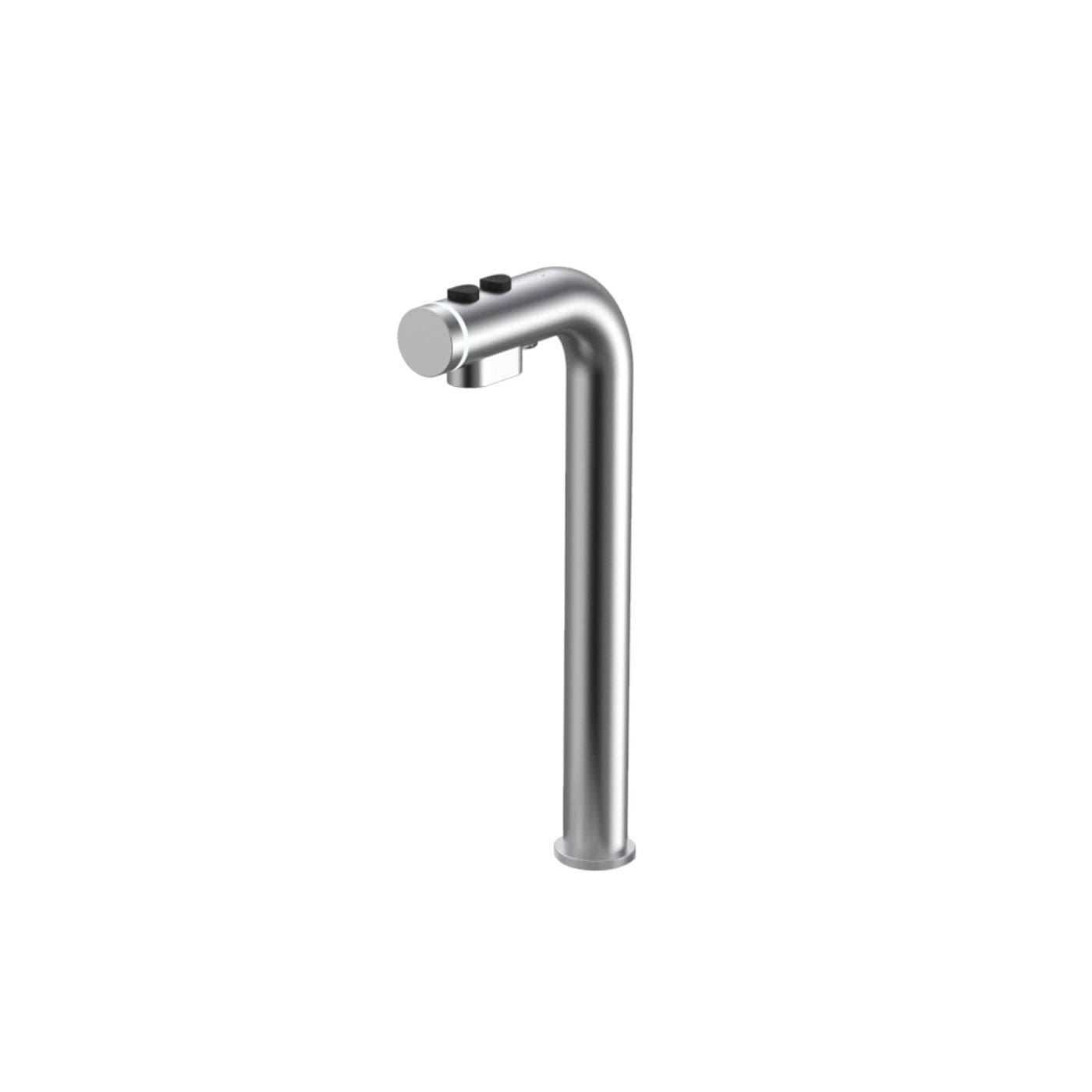

FRIIA HC Font

• Order Code: 1000868

• With Drip Tray (D x W x H): 168 x 120 x 286 mm

• Without Drip Tray: 138 x 30 x 286 mm

• Tap to Counter Height: 247 mm

• Shipping Dimensions: 290 x 570 x 215 mm

• Weight: 1.65 kg

Additional Information

• System Components: Boiler, chiller, and font are shipped in separate boxes

• Installation: Fits standard undercounter setups

• Power: All units operate at 220V

• Applications: Suitable for high-demand, multi-use environments

• Maintenance: Easy-to-clean and service design
