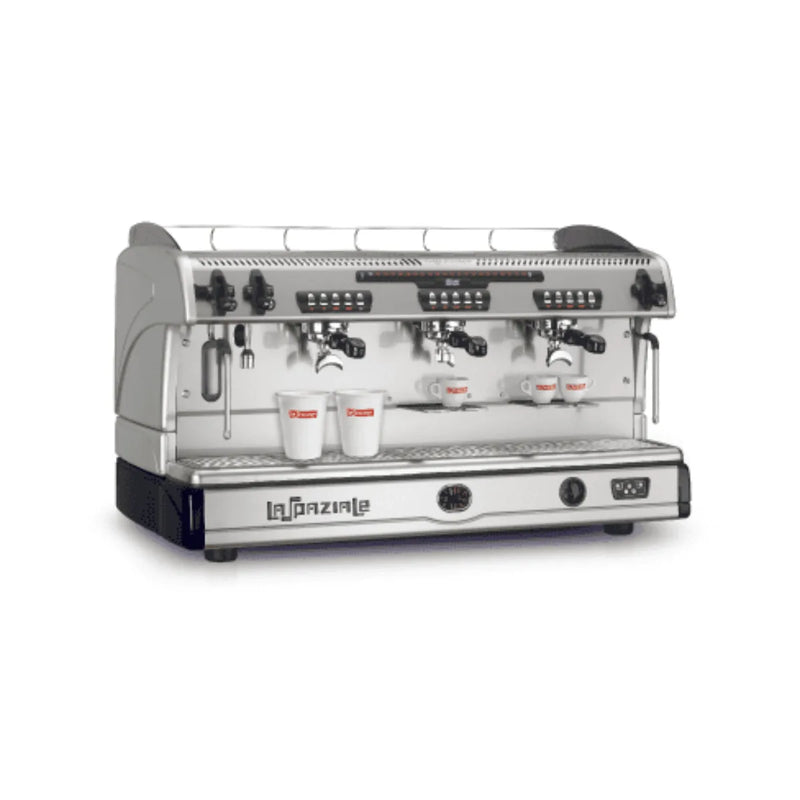

The La Spaziale S5 EK TA is a 3-group electronic espresso machine designed for speed, precision, and convenience in high-demand coffee environments. With its automatic dose setting, electronic temperature regulation, and compatibility with 16 cm takeaway cups, it’s ideal for cafés, coffee shops, and fast-paced venues looking to serve large volumes without compromising on quality.
This model includes advanced boiler management, real-time LED display, and dual steam wands, offering maximum control and performance for experienced baristas and commercial operators. Built for versatility, the machine can be configured for single or three-phase power, and offers multiple upgrade options to fit your unique service setup.
Electronic coffee machine with automatic dose setting – ensures consistency across every shot
Electronic boiler refill – maintains constant water levels during busy hours
Double pressure gauge – monitors both boiler and pump pressure
Electronic boiler temperature control – with temperature shown on a front-facing LED display
Automatic temperature boost function – ensures performance during peak periods
Built-in volumetric pump – for stable, precise extraction
1 hot water outlet & 2 steam wands – for simultaneous milk frothing and beverage preparation
Control alarms for malfunction detection – enhances reliability and maintenance awareness
Electric heating system – with option to deactivate if needed
Electric cup warmer – available as an optional upgrade
Upgraded heating element – available on request for faster heat-up and recovery
Taller cup guard & espresso cup grid – allows service flexibility for takeaway or dine-in
16 cm clearance between group heads and drip tray – perfect for tall takeaway cups
Removable cup grid – simplifies use with smaller espresso cups
| Specification | Details |
|---|---|
| Model | La Spaziale S5 EK TA (3 Group) |
| Dimensions (L x D x H) | 1000 x 530 x 600 mm |
| Weight | 86 kg |
| Boiler Capacity | 15 liters |
| Power Supply (Volt) | 220V / 240V / 400V |
| Frequency | 50 / 60 Hz |
| Standard Power Consumption | 4500 W |
| Max Power with Upgraded Element | 6500 W |
| Group Head Clearance | 160 mm |
Supplied in 3-phase configuration by default
Can be easily converted to single-phase (see included P1 & P2 wiring diagrams)
Ideal for 3–4 group commercial operations or high-volume takeaway environments
La Spaziale S5 Machine Brochure
Single Phase Conversion Sheets (P1 & P2)
Busy cafés and coffee chains
High-volume takeaway service
Businesses requiring consistent output and flexible configuration
The La Spaziale S5 EK TA combines technology, reliability, and barista-centric features to deliver powerful performance and modern convenience in any high-output coffee setup.
