Diamond

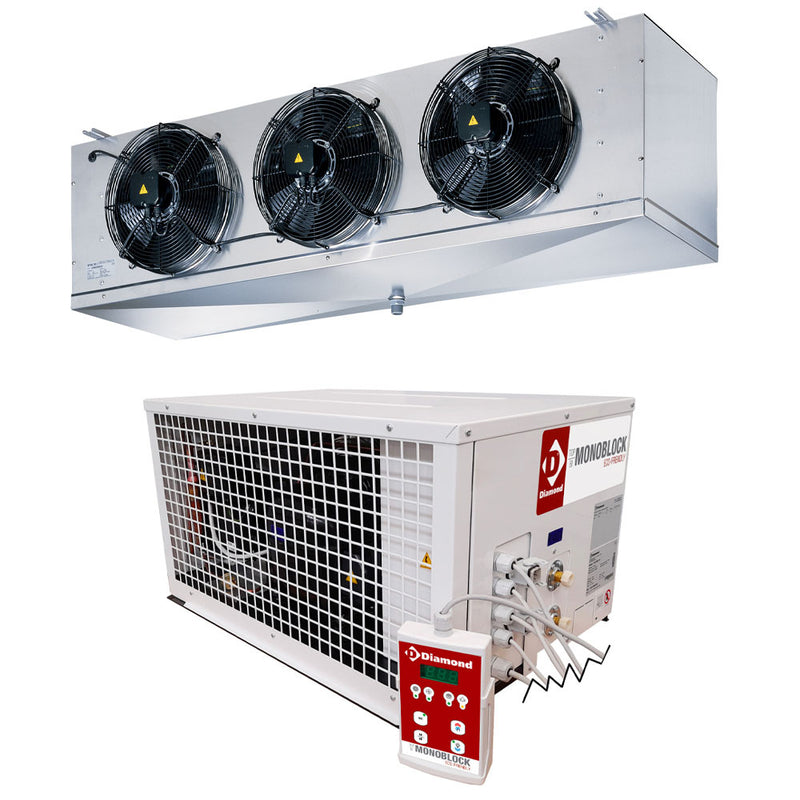

Diamond HP200T-6R Refrigerated Unit "By-Block" T° -5°+5°
£10,767.20
- Cooling capacity 3490 (W/f) for room volume 34,3 m³ / 34300 Lit (T° internal 0° C & T° external +32° C).
- Refrigerant expansion by thermostatic valve.
- Also equipped with a high pressure switch (fixed calibration) (C-PMAX-R).
- Bi-block" refrigeration units.
- Due to its design, the condensing unit is suitable for outdoor installation and can be placed anywhere, floor, ceiling, wall,...
- Delivered with 2 wall brackets as standard.
- Pipes (pre-loaded) and cables are supplied for connection within a radius of 5 meters (10 meters optional).
- All units are supplied as standard with a high pressure switch and KVL valve, as well as cables for door and light microswitches.
- Control panel with separate touch-sensitive keys, connected to the unit by a 10 m cable
- Automatic defrosting by electric resistance, water flow located below the evaporator
- The evaporator drain pipe is equipped with a resistance to prevent ice formation.
- Unit certified in climate class 5 (40°C Temperature - 40% Humidity).
- Refrigerant gas R452a.
- Window lights delivered as standard with micro-switch for door.
