Diamond

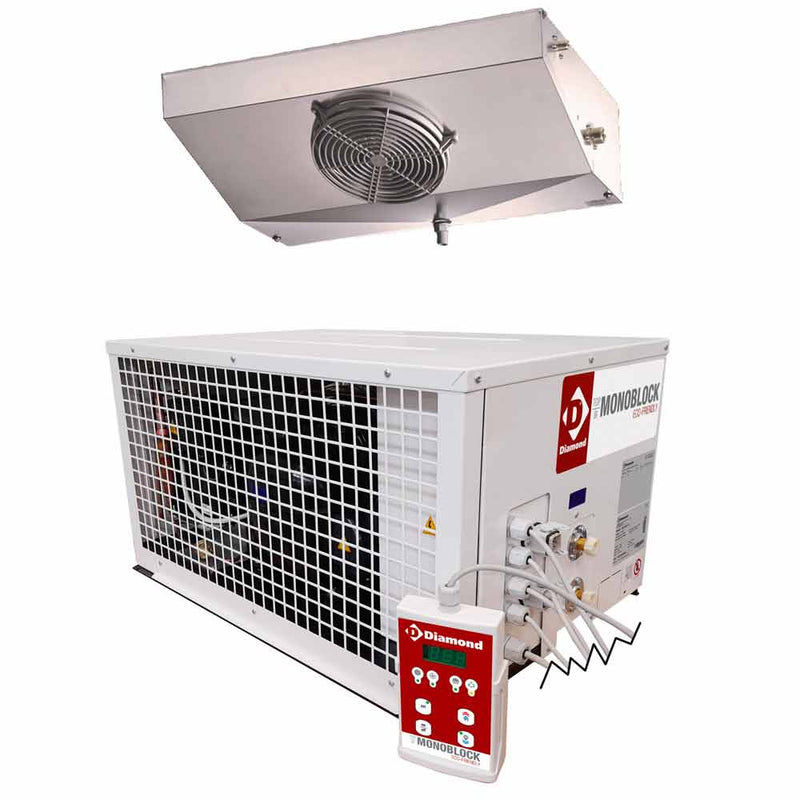

Diamond HN170M-1R Refrigerated Group "By-Block" T° -15°-25°
£5,909.60
- Cooling capacity rendered 824 (W/f) for chamber volume 5,0 m³ / 5000 Lit
- (T° internal -20° C & T° external +32° C).
- Refrigerant expansion by thermostatic valve.
- The low temperature units (HN) are supplied with a cable for the connection of the door resistor.
- Bi-block" refrigeration units.
- Due to its design, the condensing unit is suitable for outdoor installation and can be placed anywhere, floor, ceiling, wall,...
- Delivered with 2 wall brackets as standard.
- Pipes (pre-loaded) and cables are supplied for connection within a radius of 5 meters (10 meters optional).
- All units are supplied as standard with a high pressure switch and KVL valve, as well as cables for door and light microswitches.
- Control panel with separate touch-sensitive keys, connected to the unit by a 10 m cable
- Automatic defrosting by electric resistance, water flow located below the evaporator
- The evaporator drain pipe is equipped with a resistance to prevent ice formation.
- Unit certified in climate class 5 (40°C Temperature - 40% Humidity).
- Refrigerant gas R452a.
- Window lights delivered as standard with micro-switch for door.
