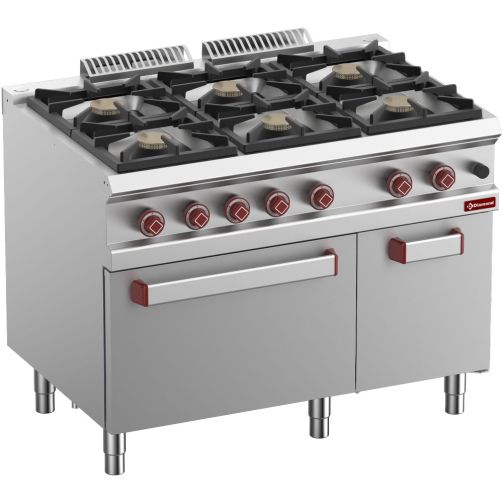

Diamond 6 Burner Gas Range on Closed Cupboard

The Diamond 6-Burner Gas Range with Integrated Oven and Neutral Cupboard is a compact yet powerful solution for professional kitchens that require high efficiency and versatility. Constructed entirely from AISI 304 stainless steel and equipped with high-efficiency burners and a GN 2/1 gas oven, this unit delivers robust performance in a space-saving footprint. With thoughtful features like integrated liquid collection, IPX5-rated watertightness, and dishwasher-safe cast-iron grids, it ensures both convenience and durability for intensive daily use.

Key Features:

• 6 High-Efficiency Burners:

  • 6 burners, each 7 kW (totaling 42 kW)

  • Sealed, treated cast-iron burners with brass crowns

  • Adjustable flame (1.5 to 7 kW) with gas valve regulation

  • Pilot ignition with thermocouple safety

  • Easy front access for maintenance

  • Enamelled cast-iron cooking grids (330 x 300 mm) – dishwasher safe

• Integrated Gas Oven:

  • Power: 6 kW

  • GN 2/1 capacity

  • Internal Dimensions: W560 x D630 x H310 mm

  • Stainless steel burners with stabilized flame

  • Temperature range: 150°C to 290°C, controlled via thermostatic gas valve

  • Piezoelectric ignition and safety thermocouple

  • Double-walled insulated stainless steel door with spring hinges and lateral guides on 3 levels

  • Supplied with 1 grid

• Neutral Storage Cupboard:

  • GN 1/1 compatible

  • Internal Dimensions: W325 x D535 x H320 mm

  • Perfect for storage of utensils, trays, or ingredients

• Durable & Hygienic Design:

  • Full AISI 304 stainless steel construction

  • Pressed, watertight 15/10 mm thick top with integrated liquid collection basins

  • IPX5-rated water resistance for safety and cleanliness

  • Rear chimney in stainless steel for heat ventilation

  • Adjustable stainless steel feet for leveling on uneven surfaces

Specifications:

• Manufacturer: Diamond

• Model Type: 6-Burner Gas Range with Oven & Neutral Cupboard

• External Dimensions: W1100 x D730 x H920 mm

• Internal Dimensions (Oven): W560 x D630 x H310 mm

• Internal Dimensions (Cupboard): W325 x D535 x H320 mm

• Colour: Stainless Steel

• Warranty: 1 Year (Parts Only)
