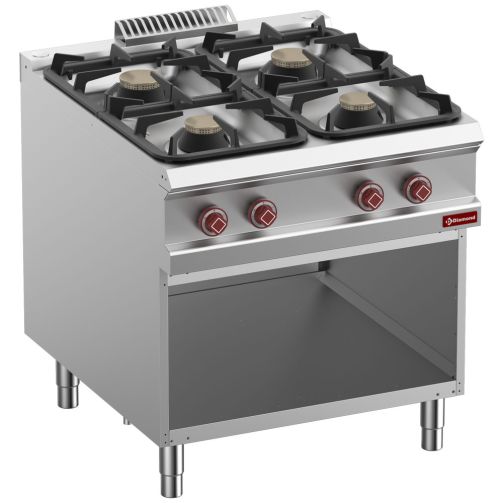

Diamond 4 Burner Gas Range on Open Cupboard

Compact yet powerful, the Diamond 4-Burner Gas Range with Open Cupboard is engineered for efficiency, flexibility, and durability in demanding commercial kitchens. Built entirely from AISI 304 stainless steel, this unit features four high-efficiency burners and a spacious GN 2/1 open cupboard for added storage and convenience. With thoughtful construction, waterproof design, and easy-to-clean surfaces, it offers excellent performance with minimal maintenance.

Key Features:

• 4 High-Efficiency Burners:

  • 2 burners at 7 kW and 2 burners at 11 kW

  • Treated cast-iron burners with brass crowns for optimal heat output

  • Burner control from 1.5 to 7 kW and 2 to 11 kW via gas valve

  • Pilot ignition and thermocouple safety for each burner

  • Easy front access for maintenance

  • Enamelled cast-iron grates (390 x 380 mm) – dishwasher safe

• Integrated Open Cupboard:

  • GN 2/1 compatible

  • Internal Dimensions: W760 x D740 x H360 mm

  • Ideal for storage of trays, utensils, or cooking tools

• Durable & Hygienic Design:

  • Constructed entirely from AISI 304 stainless steel

  • Stamped 20/10 mm thick top, watertight with integrated stainless steel liquid collection bowl

  • Rear chimney for heat ventilation

  • IPX5-rated waterproof design for maximum hygiene and safety

  • Adjustable stainless steel feet for stability on uneven surfaces

• Oven-Ready Frame (No Oven Included):

  • Oven enclosure and double-walled door made from stainless steel with thermal insulation

  • 3-level lateral guides, spring-hinged door, and stainless steel handle

Specifications:

• Manufacturer: Diamond

• Model Type: 4-Burner Gas Range with Open Cupboard

• External Dimensions: W800 x D900 x H920 mm

• Internal Dimensions (Cupboard): W760 x D740 x H360 mm

• Colour: Stainless Steel

• Warranty: 1 Year (Parts Only)
